Mica tape has long been recognized as one of the most reliable insulation materials for high-temperature electrical systems. Known for its ability to withstand extreme heat and provide stable insulation, mica tape plays a critical role in fire-resistant cables, generators, motors, and other demanding applications.
But the real challenge lies not only in the quality of the mica tape itself, but also in how to use mica tape properly. Improper application can reduce its effectiveness, shorten equipment life, and even lead to electrical failure. This guide breaks down the essentials — from material properties to correct wrapping techniques, key precautions, and real-world applications.
Mica is a naturally occurring mineral that can resist high temperatures far beyond most synthetic materials. When processed into tape form and combined with glass fabric or polyester backing, it becomes both flexible and durable.
Key material highlights:
• Heat resistance–natural mica resists up to 550–750°C; synthetic mica can reach 1000–1375°C.
• Dielectric strength–mica provides high insulation, preventing short circuits even under heavy electrical stress.
• Flexibility–with added carriers like glass cloth, mica tape can wrap complex shapes inside motors, transformers, or cables.
This combination makes mica tape far superior to conventional insulations such as polyester film or PTFE when it comes to high-heat environments.

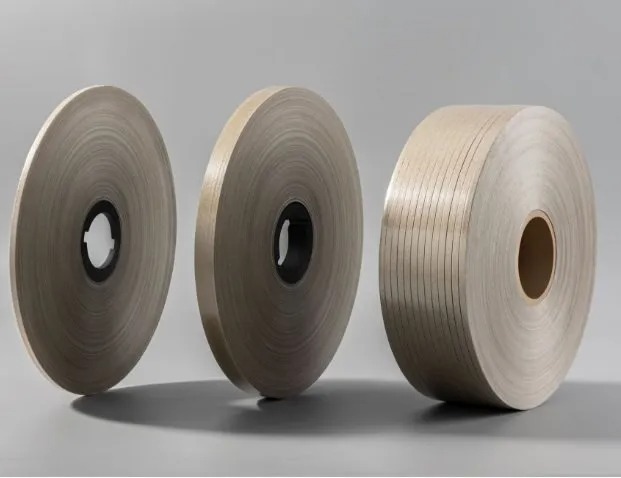

Mica tape is available in various forms such as mica tape rolls, glass mica tape, mica cable tape, mica glass tape cable, and mica glass tape insulation. Each serves a slightly different role:
• Mica Tape Roll–continuous rolls for production lines, especially in cable manufacturing.
• Glass Mica Tape–reinforced with glass fabric for extra mechanical strength.
• Mica Cable Tape–specifically designed for fire-resistant power cables.
• Mica Glass Tape Cable–combines flexibility with heat resistance for use in complex cable structures.
• Mica Glass Tape Insulation–provides layered insulation in motors, generators, and transformers.
These variations allow engineers to choose the right type depending on temperature range, mechanical stress, and installation needs.
To fully benefit from mica tape’s properties, proper usage is critical. Below is a step-by-step guide:
• Ensure the target surface is clean, dry, and free of oil, dust, or moisture.
• Contaminants can weaken adhesion and compromise insulation.
• For large-scale applications (e.g., cable wrapping), cleaning protocols should be standardized.
• Match the tape thickness and carrier (glass fabric, PET, etc.) to the equipment.
• Thin tapes are flexible but may not provide enough insulation.
• Thick tapes improve insulation but may restrict heat dissipation.
• Always check the voltage class and temperature rating of the equipment before choosing.
• Apply with consistent tension to avoid slack or bubbles.
• Overlap each layer by 30%–50% of the tape width.
• Avoid wrinkles, folds, or air pockets—these can lead to partial discharge or breakdown.
• For multi-layer applications, ensure uniform layering.
• Alternate wrapping direction between layers to balance mechanical stress.
• Maintain smooth transitions at corners or bends.
• Some glass mica tapes require thermal curing or pressure treatment to improve bonding.
• This step enhances resistance against vibration, moisture, and thermal cycling.
Even high-quality mica tape can fail if mishandled. Common errors include:
• Mica is slightly absorbent; if used in humid environments, it may reduce insulation.
• Always store mica tape in a dry, sealed container before use.
• Sharp or lifted edges concentrate electric fields, leading to corona discharge.
•Trim or smooth edges during installation to avoid weak points.
• Over-tensioning may cause cracks in mica layers.
• Loose wrapping leaves gaps and reduces dielectric performance.
• Some adhesives or varnishes may react with mica surfaces.
• Always test for chemical compatibility before large-scale application.
When deciding on insulation, engineers often compare mica with polyester film, PTFE, or fiberglass cloth.
| Property | Mica Tape | Polyester Film | PTFE | Fiberglass Cloth |
| Heat resistance | 550–1375°C | ~150°C | ~260°C | ~550°C |
| Dielectric strength | High (90–120 kV/mm) | Very high | Very high | Moderate |
| Flexibility | Medium (needs carriers) | High | High | High |
| Cost | Moderate | Low | High | Moderate |
Conclusion: In extreme heat, mica tape is unmatched. While polyester and PTFE offer higher dielectric strength, they degrade at much lower temperatures.
To maximize performance:
• Inspect regularly–check for cracks, delamination, or edge lifting.
• Replace damaged sections immediately to prevent cascading failure.
• Monitor insulation health–advanced methods such as partial discharge testing can detect early weaknesses.
For mica glass tape insulation in motors or transformers, predictive maintenance is highly recommended.
Traditional mica tape has been purely physical, but innovations are on the horizon:
• Nano coatings–enhance moisture resistance and reduce oxidation at high temperatures.
• Sensor integration–embedding tiny sensors in mica tape could allow real-time monitoring of temperature, voltage, and stress.
• Eco-friendly formulations–recyclable carriers and adhesives to reduce environmental footprint.
This points toward a future where mica tape not only insulates but also provides data-driven insights into system health.
Fire safety is one of the biggest mica tape applications today.
A mica glass tape cable can operate for 90 minutes at 840°C under 1000V during fire tests. That means in real fires, emergency systems like alarms, sprinklers, and evacuation lights can keep working long enough to save lives.
This is why mica cable tape is mandated in many safety-critical buildings like hospitals, tunnels, airports, and data centers.
Using mica tape properly is more than just wrapping it around a conductor. It requires careful preparation, correct selection, proper layering, and ongoing inspection.
From mica tape rolls in cable manufacturing to glass mica tape insulation in motors and mica glass tape cables in fire safety systems, mica tape continues to prove its value in high-temperature insulation.
By understanding both its strengths and limitations, engineers and technicians can ensure long-term reliability, safety, and efficiency.
