Our mica glass tape insulation is engineered for critical fire protection applications, combining premium mica paper with reinforced alkali-free fiberglass cloth for unmatched thermal and electrical performance. Unlike standard mica tapes, our specialized construction delivers 50% higher mechanical strength while maintaining exceptional flexibility for complex cable configurations.
Our mica glass tape insulation represents the next generation of fire-resistant electrical insulation, combining phlogopite mica paper with aerospace-grade fiberglass reinforcement. This mica tape electrical insulation solution delivers unparalleled thermal protection while maintaining exceptional dielectric performance, specifically engineered for mission-critical applications where standard materials fail.
1.Ultra-High Thermal Endurance
•Withstands 1200°C for 3+ hours (exceeds IEC 60331-21)
•Zero smoke emission (IEC 61034 Class A)
2.Superior Electrical Properties
•10kV/mm dielectric strength (50% > industry standard)
•Partial discharge resistance <5pC
3.Advanced Composite Structure
•Triple-layer construction:
1.Phlogopite mica tape core (98% purity)
2.Ceramic-enhanced fiberglass scrim
3.High-temp silicone adhesive matrix
1.Energy Sector
•Nuclear reactor containment wiring
•Geothermal power plant cable systems
2.Transportation
•EV battery fire containment sleeves
•Aircraft engine compartment harnesses
3.Critical Infrastructure
•Subsea data center interconnects
•Smart grid high-voltage terminations

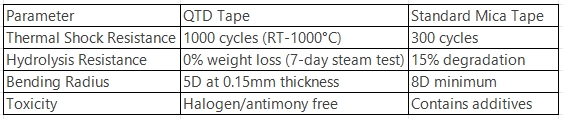

| Parameter | QTD Tape | Standard Mica Tape |
| Thermal Shock Resistance | 1000 cycles(RT-1000℃) | 1000 cycles(RT-1000℃)300 cycles |
| Hydrolysis Resistance | 0%weight loss (7-day steam test) | 15%degradation |
| Bending Radius | 5D at 0.15mm thickness | 8D minimum |
| Toxicity | Halogen/antimony free | Contains additives |
1.Thickness Options: 0.05mm (aerospace) to 0.3mm (industrial)
2.Adhesive Systems:
•Ceramic-loaded (1500°C)
•Pressure-sensitive (field repairs)
3.Reinforcements:
•Nanofiber-enhanced glass cloth
•Aramid hybrid constructions
Certified Protection
•UL 94 V-0 (Plastics) • IEEE 1580 (Marine) • EN 45545-2 (Rail) • AS/NS 1530.3 (Building)
1.Cold Application - Bonds at room temperature
2.Self-Fusing - No curing required
3.X-Ray Detectable - Contains tracers for inspection
Expert Tip: For HV applications:
•Apply spiral wrap with 60% overlap
•Use conductive variant for static dissipation
•Combine with our ceramic coating for 2000°C protection
Available Formats:
1.Standard Rolls: 25mm-1000mm width
2.Pre-cut Kits: Customized for busbar insulation
3.Cartridge System: For automated cable wrapping
Sustainability:
1.100% recyclable materials
2.Manufacturing carbon-neutral since 2022
3.Exceeds REACH/ROHS 3.0 standards
