Our glass cloth electrical tape is engineered for demanding high-temperature applications. Composed of a durable 0.13mm glass cloth backing and coated with a flame-retardant, thermosetting silicone adhesive, this 0.2mm thick tape delivers exceptional electrical insulation, heat resistance, and mechanical durability in extreme environments.
Our glass cloth electrical tape (also known as fiber cloth tape or glass cloth adhesive tape) is engineered with a durable fiberglass mesh cloth backing and high-performance silicone adhesive. This adhesive fiberglass mesh tape delivers superior insulation, heat resistance, and mechanical strength for extreme industrial applications.
Extreme Heat Endurance – Withstands 200°C continuous (260°C intermittent)
Electrical Insulation – 5kV/mm dielectric strength (IEC 60371)
Reinforced Structure – Fiberglass mesh cloth base resists tearing and abrasion
Chemical Resistant – Protects against oils, acids, and solvents
Versatile Adhesion – Bonds firmly to metals, ceramics, and most substrates
•High-Temperature Wiring – Ideal as glass cloth tape high temperature solution for motors/transformers
•Industrial Heating Systems – Insulates heating elements and furnace wiring
•Aerospace & Automotive – Protects engine compartment wiring
•Foundry Equipment – Withstands molten metal splatter and sparks
•Power Plant Maintenance – Secures turbine generator windings

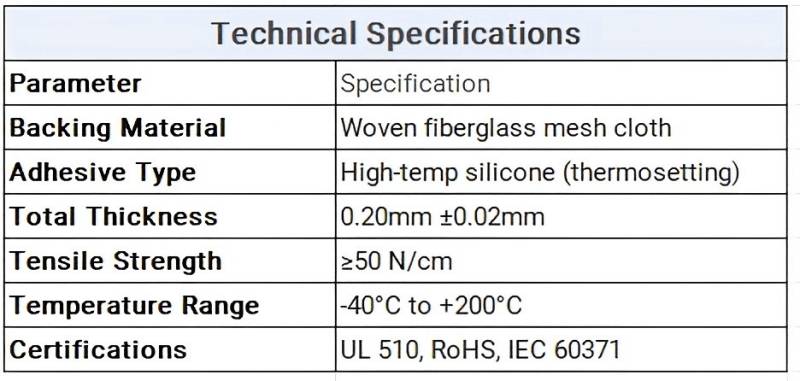

| Parameter | Specification |
| Backing Material | Woven fiberglass mesh cloth |
| Adhesive Type | High-temp silicone (thermosetting) |
| Total Thickness | 0.20mm±0.02mm |
| Tensile Strength | ≥50 N/cm |
| Temperature Range | -40℃ to +200℃ |
| Certifications | UL 510,RoHS,IEC 60371 |
Outperforms Standard Tapes
•3X stronger than PVC tapes at high temps
•Won't brittle or crack like cheaper alternatives
Multi-Functional
•Functions as both adhesive fiberglass mesh and insulation tape
•Replaces traditional fiberglass mesh cloth + separate adhesive systems
Engineered for Professionals
•Non-corrosive adhesive preserves conductor integrity
•Clean removal without residue
Available Configurations
•Widths: 10mm / 15mm / 20mm / 25mm
•Lengths: Standard 33m rolls (custom available)
•Colors: Natural (amber), Black
Pro Installation Tip:
For best results on motor windings:
1.Clean surface with alcohol
2.Apply tape at 50% overlap
3.Press firmly to activate adhesive
Compared to standard tapes, our glass cloth adhesive tape provides:
•50% higher tensile strength
•3X longer service life in high-heat environments
•Superior arc resistance
Trusted By: Electrical engineers, motor rewinding specialists, and industrial maintenance teams worldwide.
Need OEM branding or special formulations?[Get in touch with our manufacturing experts today!]
