Our copper foil tape with conductive adhesive is a professional-grade, dual-conductive tape that delivers wire-like current transfer (resistivity <0.05Ω/㎡) and superior EMI/RFI shielding. Featuring 99.9% pure copper foil and conductive acrylic adhesive on both sides, this tape is ideal for electronics repair, ESD protection, and creative DIY projects.
Our copper foil tape with conductive adhesive is an industrial-grade shielding tape that delivers unparalleled conductivity and EMI/RFI protection. This double sided conductive copper tape features 99.9% pure oxygen-free copper foil with pressure-sensitive conductive adhesive on both sides, creating seamless current paths and superior electromagnetic shielding. Ideal for electronics repair, ESD-safe workstations, and precision grounding applications.
1.Dual-Path Conductivity
•Conducts through both foil and adhesive layers (<0.05Ω/sq surface resistivity)
•Carries 5A/mm² current - functions as conductive copper foil tape for circuit repairs
2.Military-Grade Shielding
•60dB+ EMI attenuation (30MHz-1GHz) as copper shielding tape
•Eliminates ground loops in audio systems
3.Engineered for Precision
•0.03mm ultra-thin pure copper - bends like cloth
•Hand-tearable - no scissors needed
4.Advanced Material Science
•Conductive adhesive remains stable (-40°C to 150°C)
•Passes 100+ bend cycles without cracking

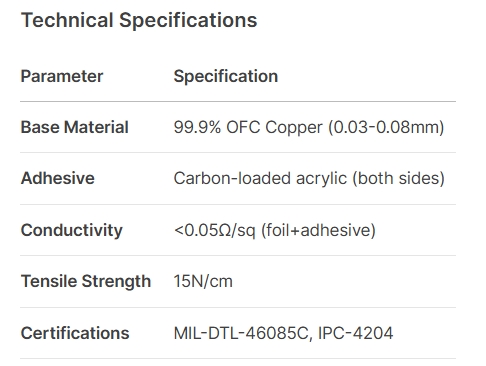

| Parameter | Specification |
| Base Material | 99.9%OFC Copper(0.03-0.08mm) |
| Adhesive | Carbon-loaded acrylic(both sides) |
| Conductivity | <0.05Ω2/sq(foil+adhesive) |
| Tensile Strength | 15N/cm |
| Certifications | MIL-DTL-46085C,IPC-4204 |
1.Electronics Manufacturing
•PCB shield cages (copper tape conductive adhesive alternative to plating)
•Flexible circuit repairs
2.EMI/RFI Control
•Faraday cage construction
•Medical device shielding
3.Industrial Maintenance
•Grounding strap installations
•HVAC static discharge prevention
4.Creative Solutions
•Stained glass soldering
•DIY electromagnetic experiments

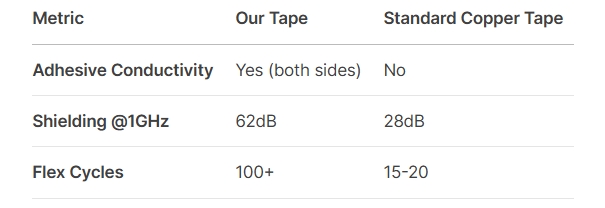

1.True Double-Sided Conduction
Unlike single-sided conductive copper foil tape, both layers carry current
2.No Delamination Risk
Special crosslink adhesive withstands 10X more flex cycles
3.Precision Thickness Options
From 0.03mm (flexible circuits) to 0.1mm (structural shielding)
1.Surface Prep - Clean with IPA for maximum adhesion
2.Apply Tape - Rub firmly with plastic squeegee
3.Test Continuity - Verify <1Ω resistance across joints
Custom Services:
• Laser-cut EMI gaskets
• Custom widths (1mm-500mm)
• ROSH-compliant versions
