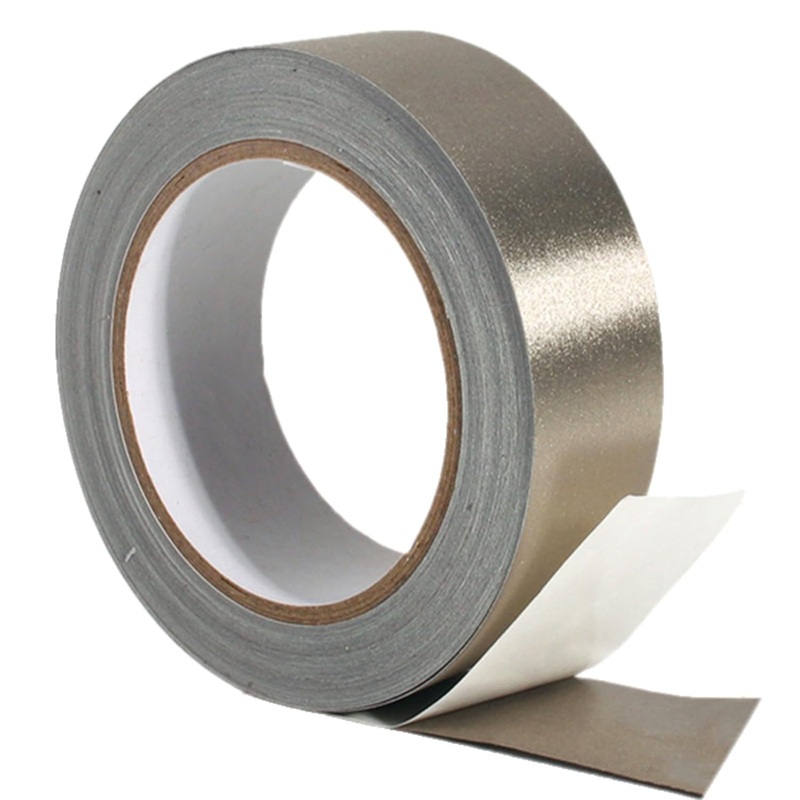

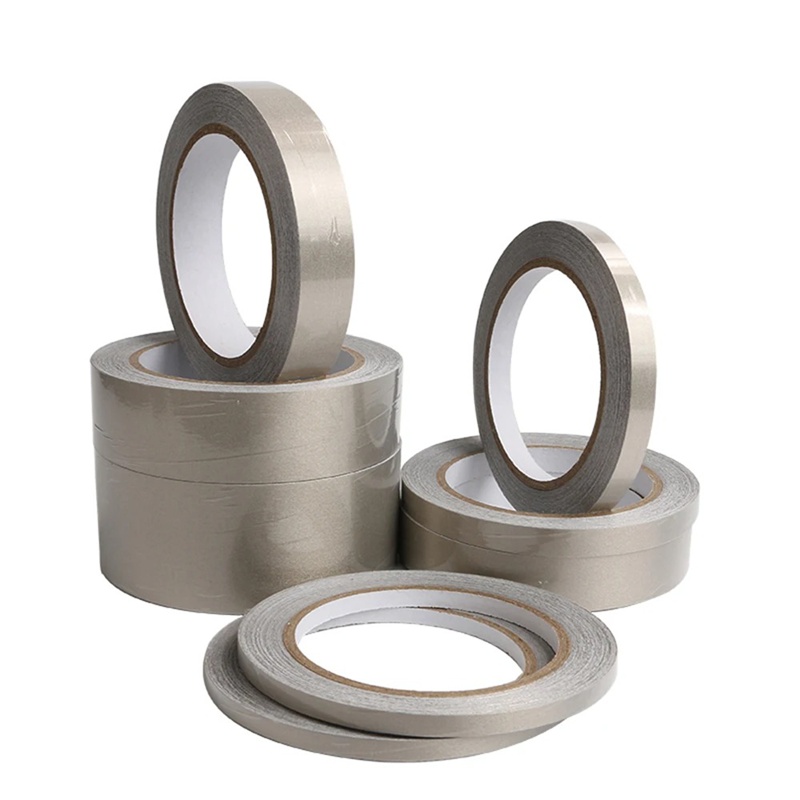

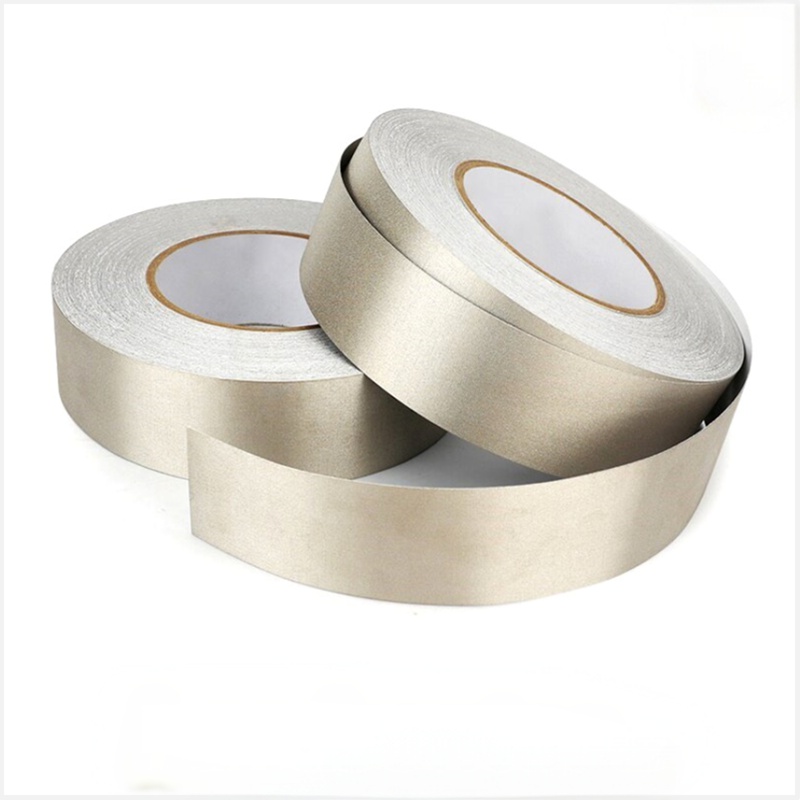

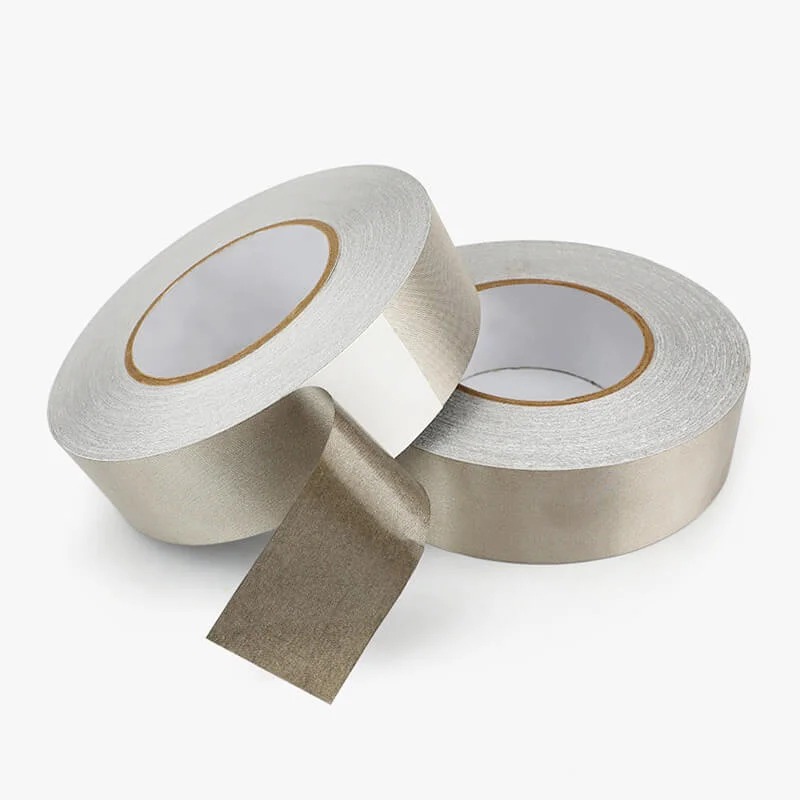

Conductive Cloth Tape–Advanced EMI/RFI Shielding & Grounding Solution

Product Description

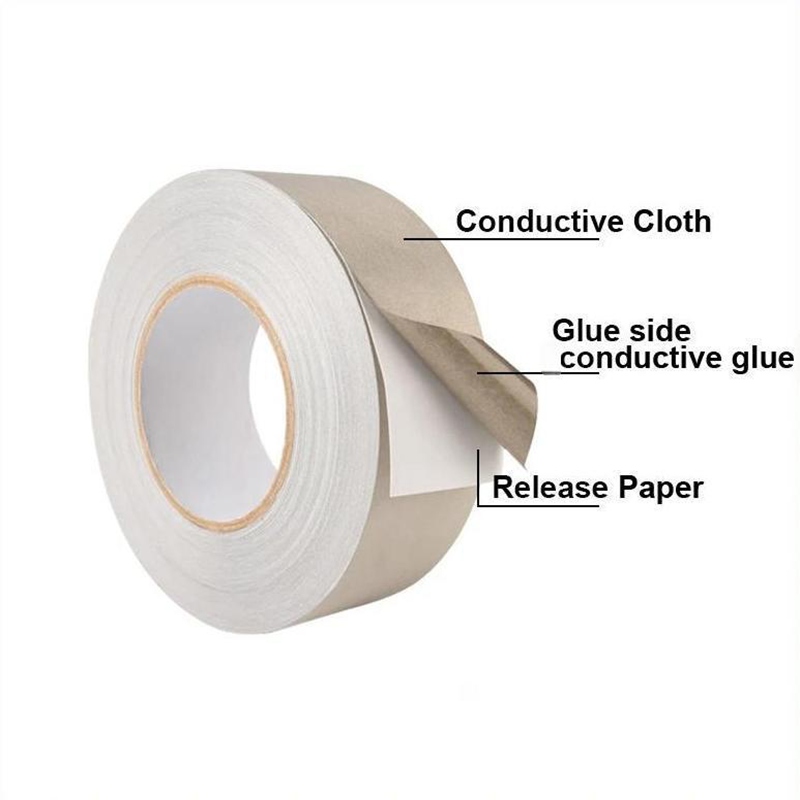

Our conductive cloth tape is a premium-grade shielding material combining metal-plated nylon fabric with conductive acrylic adhesive. This conductive fabric tape delivers superior EMI/RFI attenuation (up to 80dB) while maintaining exceptional flexibility for complex surfaces. Ideal as conductive nylon fabric tape for electronics protection, Faraday cage construction, and static control applications.

Key Features & Benefits

1.Military-Grade Protection

•70-80dB EMI/RFI shielding (30MHz-6GHz)

•UL 94 V-0 flame rated

2.Dual-Conductive Performance

•Nickel/copper plated conductive nylon tape (<0.1Ω/sq)

•Carbon-loaded adhesive ensures continuous conductivity

3.Engineered for Professionals

•Hand-tearable conductive cloth fabric adhesive tape

•500+ flex cycles without cracking

•-40°C to 150°C operating range

4.Universal Application

•Bonds to metals, plastics, composites

•25N/cm peel strength

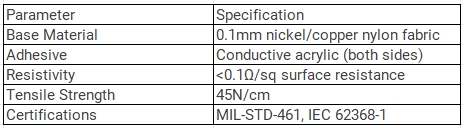

Technical Specifications

Professional Applications

1.Electronics Shielding:

•PCB shield cans (conductive nylon tape alternative)

•5G/WiFi device EMI containment

2.Industrial Grounding:

•Control panel static discharge

•Aircraft avionics protection

3.Specialty Uses:

•Faraday cage construction

•Medical imaging equipment

Why Outperform Metal Tapes?

1.300% more flexible than copper foils

2.Maintains conductivity when creased

3.No special tools required

Trusted By:

•Aerospace Tier 1 suppliers

•Medical device manufacturers

•Automotive electronics engineers

Custom Services:

• Custom widths (5mm-1000mm)

• Silver-plated versions (0.05Ω/sq)

• Pre-cut EMI gaskets
