In the power industry, electrical harness tape is one of the key materials that ensures the safe and stable operation of electrical systems. With the increasing complexity of power grids—especially the development of high-voltage, ultra-high-voltage transmission and smart grids—the wiring environment for power equipment has become more demanding, placing higher requirements on cable protection. Proper use of wiring harness tape not only prevents potential safety hazards such as short circuits and leakage but also extends equipment lifespan and improves energy transmission efficiency.
Modern power systems are developing toward higher voltage, intelligence, and reliability. Ultra-high-voltage transmission (1000 kV AC / ±800 kV DC) demands higher dielectric strength for insulation materials; sensors and communication cables in smart grids require electromagnetic interference (EMI) shielding; and the complex wiring environments in renewable energy systems (wind and solar), with high humidity, salt spray, and UV exposure, make it difficult for conventional tapes to meet the requirements.
In addition, long-term outdoor exposure of power equipment (such as in substations and transmission towers) requires tapes with excellent weather resistance, while the high-vibration environments of rail transit and electric vehicles demand superior abrasion and tensile strength. Industry standards such as IEC 60454 and UL 510 are continuously evolving, pushing tape materials toward high-performance solutions. All these factors make proper use of wiring harness tape more critical than ever.
1.Insulation Protection: Prevents short circuits and leakage, especially in high-voltage environments where substandard tape can cause breakdown accidents.
2.Mechanical Protection: Reduces wear caused by vibration and friction, preventing cable exposure and faults.
3.Moisture & Corrosion Resistance: Effectively blocks water vapor and corrosive substances in humid, salt-spray, or chemically aggressive environments.
4.Electromagnetic Shielding (for high-end tapes): Minimizes EMI to ensure stable communication signals in smart grids.
5.Flame Retardancy & Fire Resistance: Flame-retardant tapes (compliant with UL 94 V0 or IEC 60695) can suppress fire spread in early stages, buying time for maintenance, while halogen-free formulas reduce toxic smoke emissions.
1.PVC Electrical Tape: Made from PVC film coated with rubber-based adhesive; offers good insulation (up to 600V), elasticity, and cost-effectiveness, ideal for low-voltage applications. Limited temperature resistance (-20℃ to 80℃) and poor UV resistance make it less suitable for outdoor use.
2.Rubber Self-Fusing Tape: Made of EPR or butyl rubber with self-amalgamating properties, forming a waterproof seal (up to IP68). Ideal for cable joints and outdoor electrical equipment requiring full sealing.
3.Polyester Film Tape: PET-based with high tensile strength and temperature resistance (-40℃ to 150℃), used for mechanical protection and bundling in transformers and switchgear.
4.Polyimide Tape: High-temperature tape with continuous service up to 260℃ (short-term 300℃), offering excellent electrical insulation and chemical stability for UHV equipment, high-current switches, and EV motors.
5.Silicone Rubber Tape: Combines flexibility with exceptional weather resistance, suitable for harsh outdoor environments such as photovoltaic and wind power installations (-60℃ to 200℃).
6.Glass Fiber Tape: Fiberglass cloth impregnated with silicone or acrylic resin, providing outstanding heat resistance (up to 500℃) and flame retardancy for high-temperature and fire protection applications.
7.Aluminum Foil Tape: Aluminum or copper foil laminated with polymers, offering both insulation and EMI shielding for smart grid communication lines and precision instruments.
1. Pre-Installation Preparation
•Surface Cleaning: Use anhydrous alcohol to remove oil, dust, and debris; ensure surfaces are dry and clean.
•Tools: Electrical knives, scissors, heat guns; check tape shelf life.
•Environment: Temperature 5–35℃, humidity <80%.

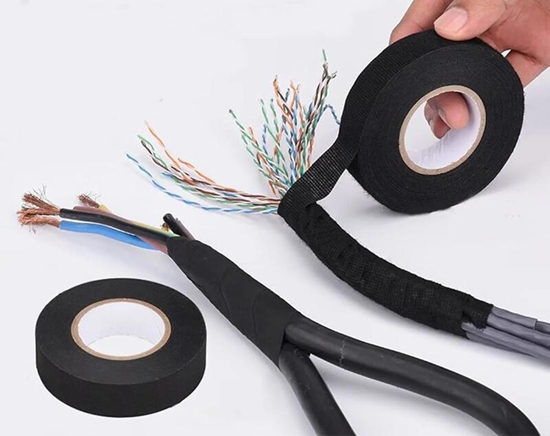

2. Wrapping Method
•Starting: Wrap at a 45° angle, with the first turn overlapping half the tape width under moderate tension.
•Standard Wrapping: Use a spiral wrap with 50% overlap, maintaining uniform tension (~1 kg).
•Direction: Always wrap in the cable’s longitudinal direction to prevent loosening.
3. Reinforcement for Special Areas
•Branches: Use a figure-8 wrap with 3–5 extra turns at split points.
•Bends: Apply 1–2 longitudinal strips before spiral wrapping.
•Connectors: Fold back at connector ends for double-layer protection.
4. Termination
•Finishing: Overlap the last 3 turns completely, fold back, and press firmly.
•Heat Shrink: Apply heat shrink tubing over critical areas.
•Inspection: Ensure no wrinkles or lifted edges.
5. High-Voltage Protection Tips
•Multi-Layer Protection: For 10 kV+ lines, use both tape and insulation tubing.
•Dielectric Testing: Post-installation insulation resistance ≥100 MΩ at 2500V.
•Corona Control: Cover stress relief devices by at least 20 mm.
•Maintenance: Inspect every 6 months; replace if aging is detected.
1.Incorrect Tape Selection: Using low-voltage PVC tape on high-voltage lines; using non-UV-resistant tape outdoors; using non-waterproof tape in wet areas; material mismatch in oil-contaminated environments.
2.Poor Application Technique: Insufficient overlap, loose wrapping, improper tension, inadequate termination sealing.
3.Mechanical Failures: Sharp bends below 15 times cable diameter causing cracks.
4.Temperature Mismatch: Using 80℃ tape in 120℃ environments; neglecting arc resistance requirements.
5.Aging & Lack of Monitoring: Using tape beyond its service life; failing to test volume resistivity regularly.
In electrical engineering, wiring harness tape is far more than just a bundling material—it is a critical safeguard for insulation, protection, and operational stability. When sourcing, prioritize professional-grade products that comply with industry standards and provide excellent weather and temperature resistance to ensure performance under heat, humidity, and UV exposure. During installation, strictly follow standardized procedures and choose the right tape type and wrapping method to avoid safety hazards from improper use. Regular inspections and timely replacement of aged tapes not only reduce maintenance costs but also extend the overall service life of electrical systems. With the continuous introduction of eco-friendly and high-performance tapes, staying updated and adopting the latest technologies will provide even stronger assurance for the safe operation of power networks.
